Carbon Steel / MED-C

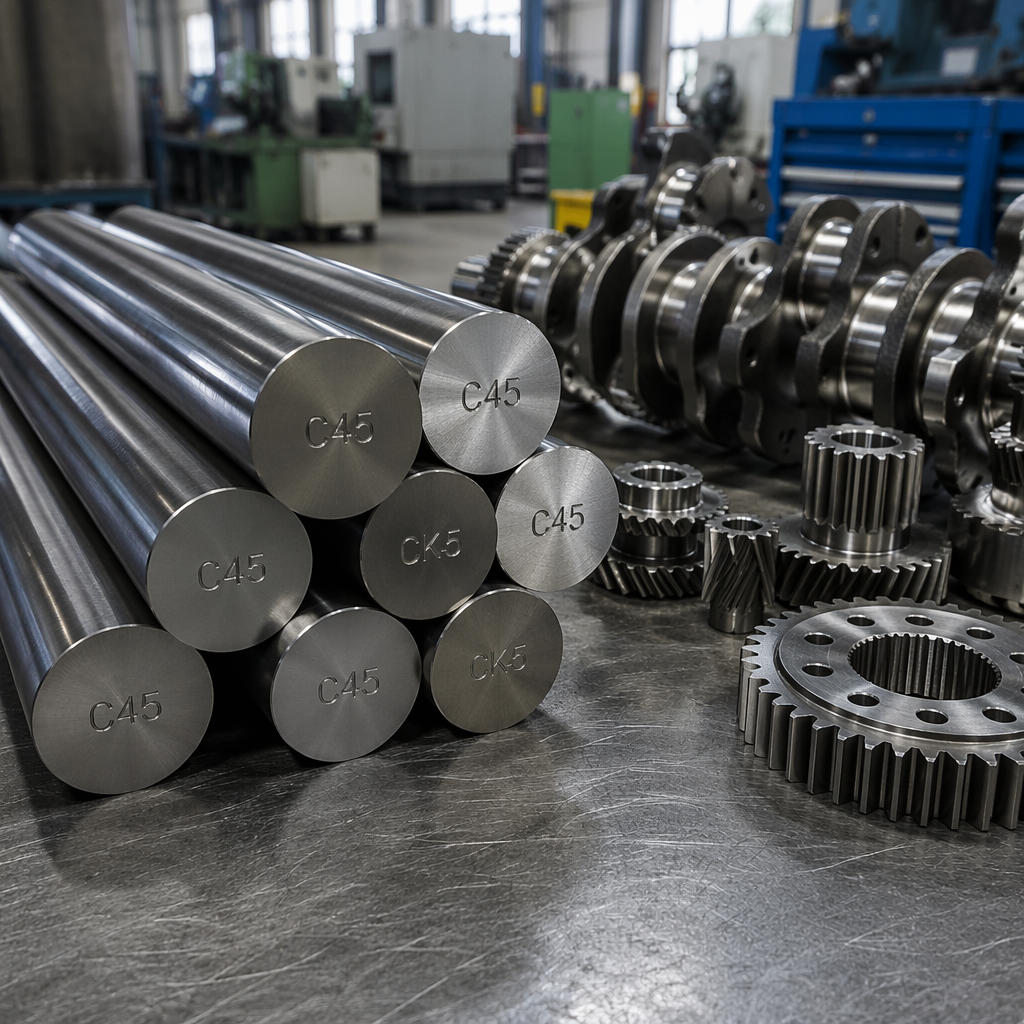

Medium Carbon Steels (Engineering Steels)

Medium carbon engineering steels offering high strength, heat treatment capability, and excellent machinability. Preferred for precision machine parts, gears, shafts, and forging applications.

Medium Carbon Steels (Engineering Steels)

Technical Specifications

Grades
C35 (1.0501), CK45 (1.1191)
Tolerance
h9, h10, h11
Size Range
Round: 4-100mm | Hex: 6-60mm | Square: 6-60mm
Standards
EN 10277, EN 10083, DIN 1652, ASTM A108

Key Features

  • High tensile and yield strength
  • Heat treatable (quenching + tempering)
  • Induction surface hardening capability
  • Excellent machinability
  • Available in 3 forms (round, hex, square)
  • Precision tolerance and surface via cold drawing
  • Consistent metallurgical structure
  • High plasticity suitable for forging

Applications

  • Gears and gearbox components
  • Shafts and axles
  • Crankshafts and camshafts
  • Engine and transmission parts
  • High strength class bolts and nuts
  • Precision machine shafts and pins
  • Forged parts and die components
  • Hydraulic cylinder rods

Dimension Table

FormDiameter/AF (mm)ToleranceStandard Length (m)Surface Finish
Round4 - 20h93 (max 6)Ra 0.8 - 1.6
Round20 - 50h9 / h103 (max 6)Ra 0.8 - 1.6
Round50 - 100h10 / h113 (max 6)Ra 1.6 - 3.2
Hexagon6 - 30h93 (max 6)Ra 0.8 - 1.6
Hexagon30 - 60h10 / h113 (max 6)Ra 1.6 - 3.2
Square6 - 30h93 (max 6)Ra 0.8 - 1.6
Square30 - 60h10 / h113 (max 6)Ra 1.6 - 3.2

Technical Notes

  • 01Carbon content ranges between 0.32% - 0.50%.
  • 02CK45 is the most widely used engineering steel (DIN equivalent: 1.1191).
  • 03C35 is ideal for applications requiring medium strength and good machinability.
  • 04Tensile strength of 600-900 N/mm2 achievable via quenching + tempering.
  • 05Surface hardness of 50-58 HRC achievable via induction hardening.
  • 06Pre-heating to 150-300°C recommended before welding; stress relief annealing required after welding.
  • 07Standard length is 3 meters, available up to 6 meters on request.

Other Types

Medium Carbon Steels (Engineering Steels): grades, standards and selection notes

This page covers Medium Carbon Steels (Engineering Steels), part of our Carbon Steel Bars range. Sizes in the dimension table: round 4–100 mm; hexagon 6–60 mm; square 6–60 mm. Tolerance classes: h9, h10, h11. Grades named for this type: C35 (1.0501), CK45 (1.1191). It is supplied to EN 10277 (technical delivery conditions for bright steel products), EN 10083 (steels for quenching and tempering), DIN 1652 (former German bright steel standard, replaced by EN 10277) and ASTM A108 (cold-finished carbon and alloy steel bars).

Reference grades with the chemical composition (wt %) and strength values of the standard: C35 (W.-Nr. 1.0501 · AISI/SAE ≈ 1035 · JIS ≈ S35C): C 0.32–0.39, Mn 0.50–0.80, Rm 630–780 MPa, Rp0.2 ≥ 430 MPa (+QT, d ≤ 16 mm). C45 (W.-Nr. 1.0503 · AISI/SAE 1045 · JIS S45C): C 0.42–0.50, Mn 0.50–0.80, Rm 700–850 MPa, Rp0.2 ≥ 490 MPa (+QT, d ≤ 16 mm). The grade datasheets linked below carry the full tables and equivalents. In the dimension table (7 rows), round bars of 4–20 mm are listed in h9 (Ra 0.8 - 1.6) and those of 50–100 mm in h10 / h11 (Ra 1.6 - 3.2), so the tolerance class widens as the size grows.

How the other types differ, according to their data: Low Carbon Steels: grades SAE 1008, C10 (SAE 1010), C15, C20, C22; standards EN 10277, EN 10278, DIN 1652, ASTM A108; C15: C 0.12–0.18, Mn 0.30–0.60 (C35: C 0.32–0.39, Mn 0.50–0.80). As a rule, low-carbon grades are chosen for welded, formed or case-hardened parts, and medium-carbon grades for parts that will be quenched and tempered or induction hardened.

To request a quotation for Medium Carbon Steels (Engineering Steels), state the grade (for example C35), the cross-section (round, hexagon and square), size, tolerance class (h9, h10, h11), the standard (EN 10277), length and quantity. Material is supplied with an EN 10204 3.1 inspection certificate; third-party inspection by bodies such as SGS, Bureau Veritas or TÜV is arranged on request. Whether the size can be supplied from stock, the minimum quantity and the lead time are stated in the quotation, which is sent within 24 hours.

Grade datasheets

Chemistry, mechanical properties and equivalents of the steel grades used for this product:

Grade comparisons

What is carbon steel?

Carbon steel is steel whose main alloying element is carbon (other elements at residual levels).

Carbon Steel Bars: guide and FAQ
