Ring Joint Gasket Catalogue - ASME B16.20
Metallic ring joint gasket solutions for high pressure and temperature applications
Ring Gasket Types
ASME B16.20 Standard
Ring Joint Gaskets: All types (5)
A short summary of each type is below. Dimension tables, materials and technical notes are on each type's own page.

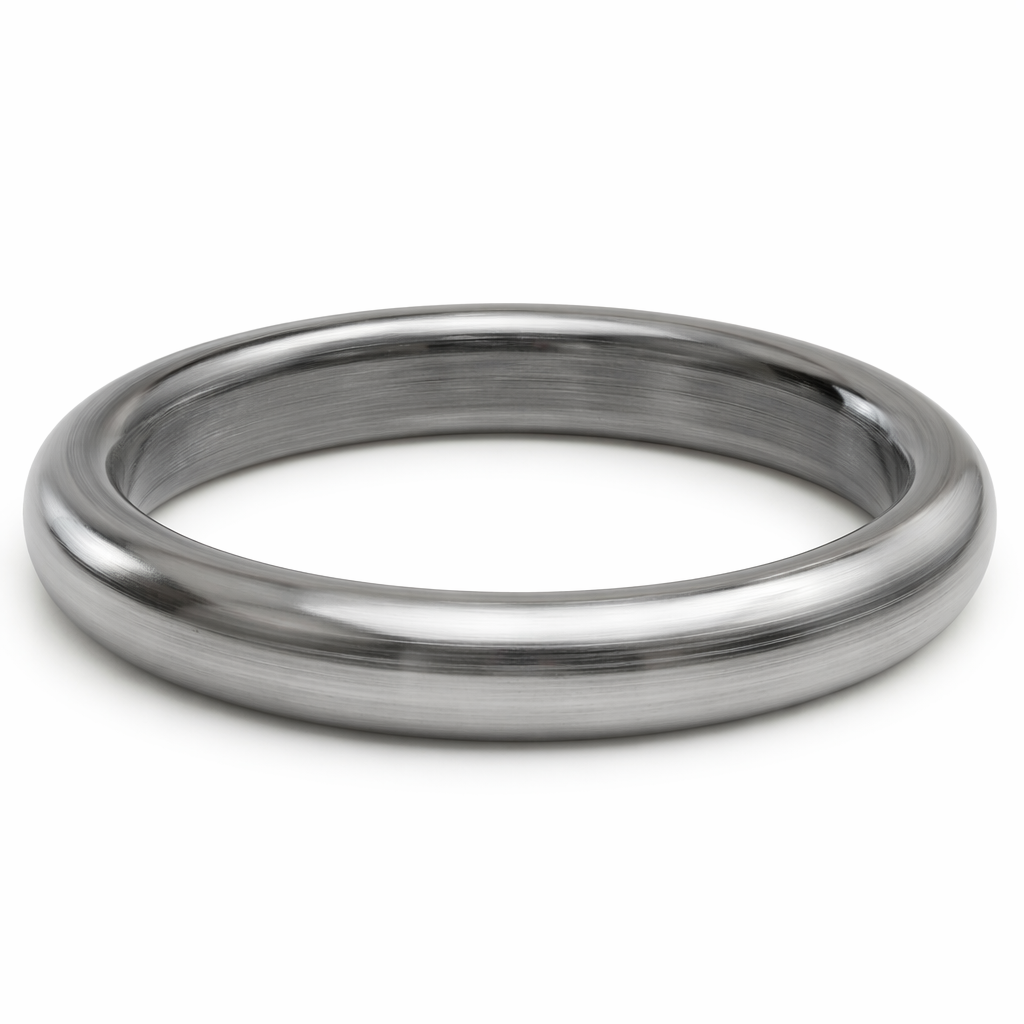

Standard oval section ring joint gasket designed for high-pressure applications.
- Standard:
- ASME B16.20, API 6A, ISO 10423
- Material:
- 304, 316, 347, 410, F5, soft iron, low-carbon steel
Self-energized, oval section ring joint gasket for higher pressure and temperature applications.
- Standard:
- ASME B16.20, API 6A, NACE MR0175
- Material:
- 304, 316, 347, 410, F5, Inconel 625, soft iron, low-carbon steel
API 6A compliant metallic ring gasket for extreme pressure and temperature service.
- Standard:
- API 6A, ASME B16.20, NACE MR0175
- Material:
- Inconel 718, 625, A182 F316, F6, F55
Octagonal Ring Gasket
RTJ-OCT
High-performance ring gasket with octagonal cross-section as an alternative to oval types.
- Standard:
- ASME B16.20, API 6A
- Material:
- 304, 316, 347, 410, F5, soft iron, low-carbon steel
Square section ring joint gasket designed for general and medium-pressure applications, with easy manufacturing and installation.
- Standard:
- manufacturer's standard or customer drawing
- Material:
- 304, 316, 347, 410, F5, soft iron, low-carbon steel
Related Sectors
Useful Calculation Tools
Detailed Technical Information and Quotation
Contact our expert team for detailed technical documents, application recommendations, and custom size quotations regarding this product type.
Get a QuoteWhat is a ring joint gasket (RTJ)?
A ring joint gasket (RTJ) is a metallic sealing ring that seals flange connections at high pressure and temperature. The R series (oval and octagonal cross-sections) is made to ASME B16.20; the pressure-energized BX and RX series to API 6A. It is used with RTJ-faced flanges in pressure classes 150#–2500#.
How RTJ gaskets work and which type goes where
The RTJ gasket sits in a trapezoidal groove machined into the flange face; as the bolts are tightened the ring deforms plastically, creating line contact against the groove walls — a metal-to-metal joint that stays tight even at very high pressure. The gasket material is therefore always chosen softer than the flange (soft iron, low-carbon steel, 304/316 stainless, alloys): the gasket must deform, not the groove. The oval section also suits older round-bottom grooves; the octagonal section seals better in modern flat-bottom grooves. RX is a pressure-energized type that fits the standard R groove; BX serves API 6A wellhead and christmas-tree applications up to 20,000 psi. RTJ gaskets are standard in oil & gas, refining and petrochemicals.
Frequently Asked Questions
Oval vs octagonal ring gasket — what is the difference?+
They differ in cross-section: oval also fits older round-bottom grooves; octagonal gives wider contact and a better seal in modern flat-bottom grooves. Both are R-series and share the same groove dimensions (B16.20).
Where are BX ring gaskets used?+
BX is for high-pressure API 6A wellhead and christmas-tree flanges; it provides pressure-energized sealing up to 20,000 psi and fits only BX-grooved flanges.
Can an RTJ gasket be reused?+
No. Sealing relies on plastic deformation of the ring, so a removed gasket has lost its dimensions and surface finish; a new gasket is fitted at every assembly.
How is RTJ gasket material selected?+
The gasket must be softer than the flange so deformation happens in the gasket, not the groove. Typical picks: soft iron/low-carbon steel for carbon steel flanges, 304/316 for stainless systems, suitable alloys for corrosive service.
