Reducer Fittings Catalog - ASME B16.9
Optimized reduction components and technical solutions for pipe diameter transitions
Reducer Types
ASME B16.9 Standard
Reducers: All types (5)
A short summary of each type is below. Dimension tables, materials and technical notes are on each type's own page.

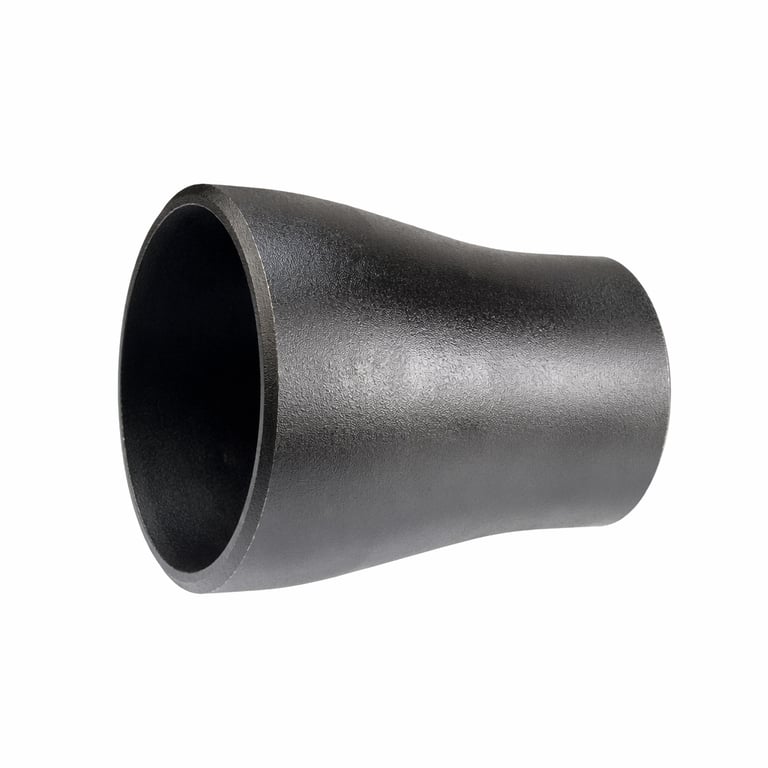

Concentric Reducer
RED-C
Axially aligned, symmetrical flow transition fitting for standard pipe reduction.
- Standard:
- ASME B16.9, MSS SP-75, EN 10253, DIN 2616
- Material:
- A234 WPB, WPBW, WP5, WP9, WP11, WP22, 304/L, 316/L
Eccentric Reducer
RED-E
Asymmetrical reducer maintaining a flat bottom line for horizontal piping.
- Standard:
- ASME B16.9, MSS SP-75, EN 10253, DIN 2616
- Material:
- A234 WPB, WPBW, 304/L, 316/L, A420 WPL6
Sudden Reducer
RED-S
Compact reducer providing high velocity gain through abrupt diameter change.
- Standard:
- manufacturer's standard or customer drawing
- Material:
- A234 WPB, 304/L, 316/L, A105
Multi-Stage Reducer
RED-M
Reducer providing optimized flow with multi-step transition for minimal pressure loss.
- Standard:
- manufacturer's standard or customer drawing
- Material:
- A234 WPB, WP5, WP9, WP11, 304H, 316H, A860 WPHY
Low-Loss Reducer
RED-L
Reducer with aerodynamic long-radius design minimizing pressure loss.
- Standard:
- manufacturer's standard or customer drawing
- Material:
- A234 WPB, 304/L, 316/L, A860 WPHY52/60
Related Sectors
Useful Calculation Tools
Detailed Technical Information and Quotation
Contact our expert team for detailed technical documents, application recommendations, and custom size quotations regarding this product type.
Get a QuoteWhat is a pipe reducer?
A reducer is a butt-weld fitting that joins two pipes of different diameters. There are two types: the concentric reducer (aligned centerlines, symmetric cone) and the eccentric reducer (one flat side, offset centerlines). Dimensions follow ASME B16.9; reducers are produced in carbon, alloy and stainless steel from 1/2" to 48".
Concentric or eccentric?
A concentric reducer keeps the pipe centerline and is standard on vertical runs. The flat side of an eccentric reducer keeps either the bottom (BOP) or top of the pipe level on horizontal runs: at pump suction the flat side goes UP so no air pocket can form; on drained lines and pipe racks the flat side goes DOWN so the pipe bottom stays continuous. The ordering notation is "large end × small end" (e.g. 8"×6"); end-to-end lengths are defined in B16.9. Materials: ASTM A234 WPB (carbon), WP11/WP22 (alloy), A403 (stainless), A420 (low temperature); EN 10253 in Europe. Delivered with 3.1 material certificates.
Frequently Asked Questions
What is the difference between concentric and eccentric reducers?+
A concentric reducer has aligned centerlines (symmetric cone); an eccentric reducer has one flat side and offset centerlines, used to keep the bottom or top of a horizontal line level.
Why use an eccentric reducer at pump suction?+
Installed flat side up, it prevents an air pocket forming at the top of the pipe — air pockets at suction can cause pump cavitation.
How do you order a reducer?+
Specify the "large end × small end" combination (e.g. 8"×6"), type (concentric/eccentric), wall thickness (SCH 40, SCH 80...) and material grade.
Which standards cover reducers?+
Dimensions and tolerances per ASME B16.9 (European equivalent EN 10253); materials per ASTM A234 (carbon/alloy), A403 (stainless) and A420 (low temperature).
