Fittings Technical Catalogue
Comprehensive fittings solutions and technical specifications for industrial piping systems.
Fitting Types
Select to view technical details
Pipe Fittings: All types (5)
A short summary of each type is below. Dimension tables, materials and technical notes are on each type's own page.

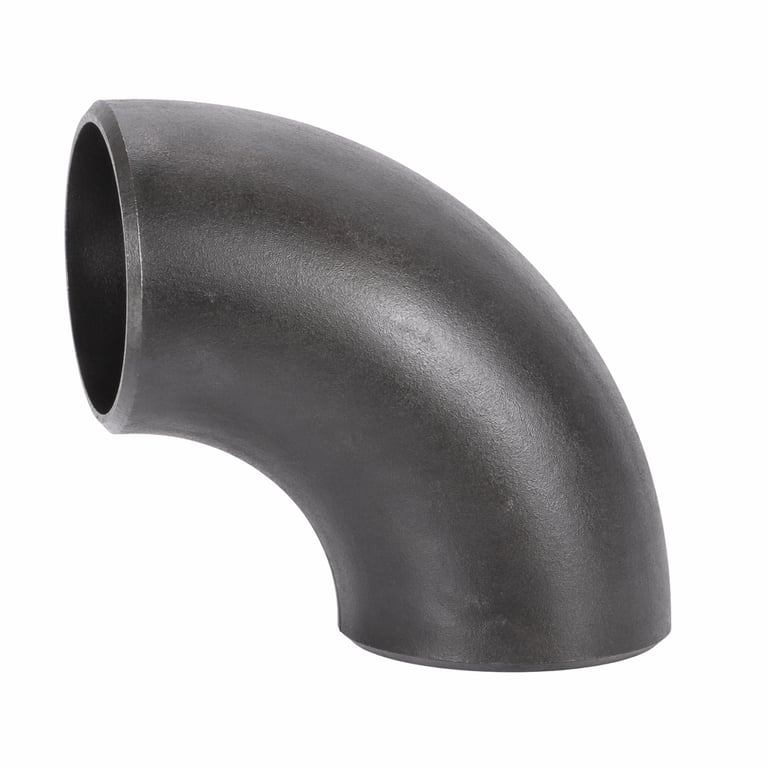

90° Elbow
90°
Standard solution for 90-degree direction change in piping systems.
- Standard:
- ANSI B16.9, ASME B16.28, EN 10253, DIN 2605
- Material:
- A234 WPB, A105, A403 WP304/L, A403 WP316/L, A182 F304/L, A182 F316/L
Tee Fitting
TEE
Used to branch off a main line or to connect two pipelines together.
- Standard:
- ANSI B16.9, EN 10253, DIN 2615
- Material:
- A234 WPB, A105, A403 WP304/L, A403 WP316/L, A182 F304/L, A182 F316/L, A182 F11
Reducer
RED
Fitting used to change pipe diameter between two sections.
- Standard:
- ANSI B16.9, EN 10253, DIN 2616
- Material:
- A234 WPB, A105, A403 WP304/L, A403 WP316/L, A182 F304/L, A182 F316/L
Coupling
CPL
Used to join two pipes of the same diameter together.
- Standard:
- ANSI B16.11, MSS SP-83, DIN 16283
- Material:
- A105, A182 F304/L, A182 F316/L, A182 F11
End Cap
CAP
Used to permanently or temporarily close the end of a pipe.
- Standard:
- ANSI B16.9, EN 10253, DIN 2617
- Material:
- A234 WPB, A105, A403 WP304/L, A403 WP316/L, A182 F304/L, A182 F316/L
Related Sectors
Useful Calculation Tools
Detailed Technical Information and Quotation
Contact our expert team for detailed technical documents, application recommendations, and custom size quotations regarding this product type.
Get a QuoteWhat are pipe fittings?
Pipe fittings are the components that change direction, branch, reduce or terminate a pipeline: elbows (90°/45°), tees, reducers, caps and crosses. Butt-weld fittings are produced to ASTM A234 / EN 10253 material specs and ASME B16.9 dimensions, in sizes from 1/2" to 48".
Elbow types and connection methods
The most used fitting is the elbow: made in 90° and 45° angles, long radius (LR, radius = 1.5 × diameter) and short radius (SR, radius = 1 × diameter). LR elbows are standard because they give lower pressure drop and turbulence; SR elbows serve tight layouts. By connection method there are three families: butt-weld (ASME B16.9 — larger bores), socket-weld and threaded (ASME B16.11 — typically below 2"). The material range covers carbon steel (A234 WPB), alloy (WP11/WP22/WP91), stainless (A403) and low-temperature (A420) grades. All products ship with 3.1 certificates and full traceability.
Frequently Asked Questions
What does ASTM A234 WPB mean?+
A234 is the material spec for wrought carbon and alloy steel fittings for moderate and elevated temperature service; WPB is the most common carbon steel grade (W=weldable, P=pressure, B=grade B).
Long radius (LR) vs short radius (SR) elbow?+
An LR elbow has a bend radius of 1.5 × diameter, an SR elbow 1 × diameter. LR gives less pressure drop and erosion; SR is chosen only where space is tight.
Where are butt-weld, socket-weld and threaded fittings used?+
Butt-weld (B16.9) on larger-bore main lines; socket-weld and threaded (B16.11) typically below 2", on small-bore, instrument and utility lines.
How do EN 10253 and ASME B16.9 relate?+
Both are butt-weld fitting standards: B16.9 is the American system, EN 10253 the European one. The project specification determines which system sets dimensions and materials.
