Forged Bars & Pipes Technical Catalogue
High mechanical strength forged steel bars and seamless tubes for power generation, mining, and heavy industry applications
Product Types
Select for technical details

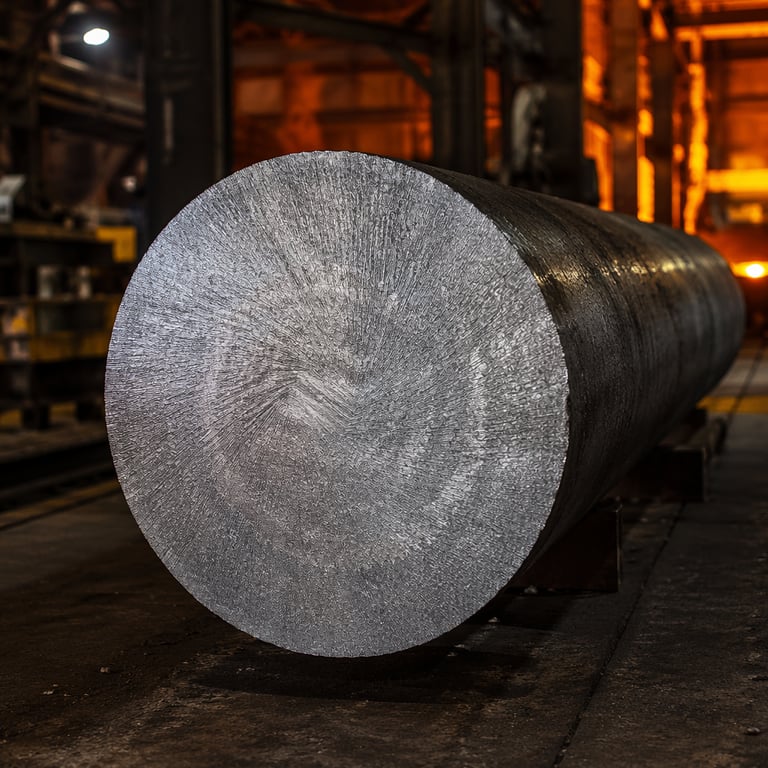

Forged Round Bars
Forged round steel bars in 200-1000mm diameter range, compliant with UNE 36-514-84 standard. High mechanical strength products for power generation, mining, and heavy machinery applications.
Standard Dimensions
| Dimension (mm) | Length (m) | Weight (kg/m) | Tolerance (mm) | Standard |
|---|---|---|---|---|
| Ø200 | 2.5 - 6.0 | 246.6 | +5/-0 | UNE 36-514-84 |
| Ø250 | 2.5 - 6.0 | 385.4 | +5/-0 | UNE 36-514-84 |
| Ø300 | 2.5 - 6.0 | 554.9 | +6/-0 | UNE 36-514-84 |
| Ø350 | 2.5 - 7.0 | 755.0 | +6/-0 | UNE 36-514-84 |
| Ø400 | 2.5 - 7.0 | 986.0 | +7/-0 | UNE 36-514-84 |
| Ø500 | 2.5 - 7.0 | 1541.0 | +8/-0 | UNE 36-514-84 |
| Ø600 | 3.0 - 7.0 | 2219.0 | +9/-0 | UNE 36-514-84 |
| Ø700 | 3.0 - 6.0 | 3020.0 | +10/-0 | UNE 36-514-84 |
| Ø800 | 3.0 - 6.0 | 3944.0 | +11/-0 | UNE 36-514-84 |
| Ø900 | 3.0 - 5.0 | 4993.0 | +12/-0 | UNE 36-514-84 |
| Ø1000 | 3.0 - 5.0 | 6165.0 | +13/-0 | UNE 36-514-84 |
Key Features
- Dense internal structure from forging pressure
- High mechanical strength and homogeneity
- Large diameter capability up to 1000mm
- Full ultrasonic testing (EN 10308)
- Heat treatment options (Q+T, Normalization, Annealing)
- Custom length cutting (2.5 - 7 meters)
- Surface finish: black, turned, ground
- Certified material (EN 10204 3.1/3.2)
Applications
- Power plant shafts and rotors
- Offshore and subsea equipment
- Mining crusher shafts
- Heavy machinery axles
- Turbine discs and generator shafts
- Cement plant equipment
- Shipbuilding shafts
- Press and rolling mill cylinders
Technical Notes
- All products undergo ultrasonic examination per EN 10308.
- Heat treatment condition is determined by customer specification.
- Surface quality: Ra 3.2 (turned), Ra 0.8 (ground) options available.
- Material certificates issued as EN 10204 3.1 or 3.2.
- Minimum order quantity applies for custom diameter and length requests.
Related Sectors
Useful Calculation Tools
Detailed Technical Information and Quotation
Contact our expert team for detailed technical documents, application recommendations, and custom size quotations regarding this product type.
Get Technical SupportWhat is a forged bar?
A forged bar is produced by pressing or hammering steel above its recrystallization temperature (~1100–1250°C). Forging closes internal voids and casting porosity, aligns the grain flow with the part geometry, and gives higher toughness, fatigue strength and internal soundness than rolled product. It is preferred for large-diameter shafts, gear blanks and critical machine parts.
Open-die forging, reduction ratio and quality assurance
In open-die forging, the material is progressively drawn out and rotated under a press; a reduction ratio of at least 3:1 is typically specified — it breaks up the ingot structure and homogenizes mechanical properties. Forgings are then normalized or quenched and tempered. Internal soundness is verified by ultrasonic testing (EN 10228 / SEP 1921). Q&T grades such as 42CrMo4, C45 and 34CrNiMo6 are the most common forged qualities; diameters beyond rolling capacity (Ø200 mm+) can only be produced by forging.
Frequently Asked Questions
Forged bar vs rolled bar — what is the difference?+
Forging closes internal porosity and aligns grain flow, giving higher toughness and fatigue strength in the same grade. Rolling is faster and cheaper; forging is chosen for large diameters and critical parts.
Why does the reduction ratio matter?+
A ratio of at least 3:1 breaks up ingot segregation and voids, guaranteeing a homogeneous, sound core. Critical specifications state it explicitly.
Which grades are supplied as forged bar?+
Most commonly Q&T steels such as 42CrMo4, C45, 34CrNiMo6 and 36CrNiMo4, plus tool steels and large-section carbon steels.
How are forged bars tested?+
Ultrasonic testing (EN 10228/SEP 1921) verifies internal soundness; chemistry and mechanical tests are reported in the EN 10204 3.1 certificate.
