Anchor Flange Catalogue
Custom anchor flange solutions for pipeline anchoring and thermal expansion control
Anchor Flange Types
Select for technical details
Anchor Flanges: All types (5)
A short summary of each type is below. Dimension tables, materials and technical notes are on each type's own page.

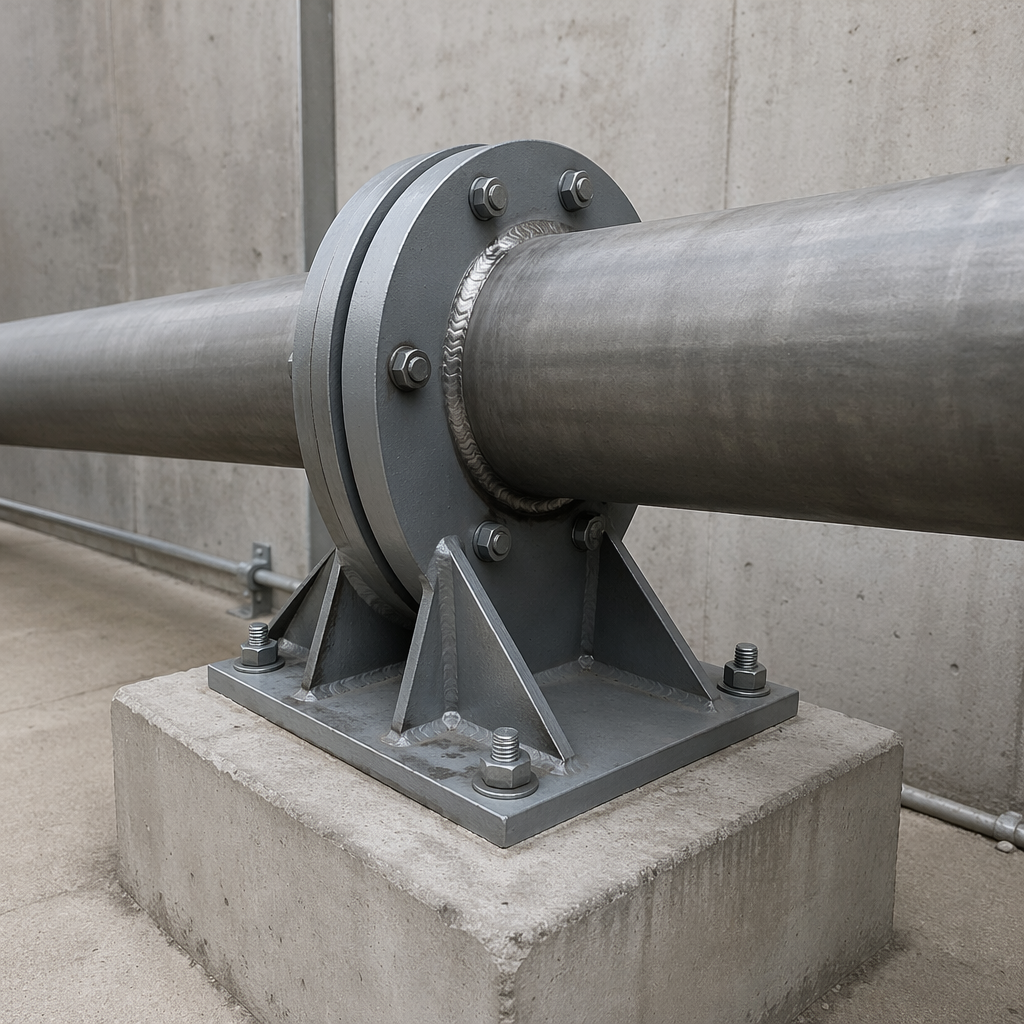

Anchor flange designed to fix the pipe line and control thermal expansion.
- Standard:
- ANSI B16.5, ASME B31.3, EN 1092-1
- Material:
- A105, A350 LF2, A182 F304/L, A182 F316/L
Directed anchor flange providing controlled linear movement and guiding support.
- Standard:
- ANSI B16.5, ASME B31.1, EN 1092-1
- Material:
- A105, A350 LF2, A182 F304, A182 F316
Economical, lightweight anchor flange for fixing pipes on low and medium pressure lines.
- Standard:
- ASME B16.5, ASME B31.3, EN 1092-1
- Material:
- ASTM A105, A350 LF2, A182 F304
Reinforced, large-diameter heavy-duty anchor flange for high pressure and high axial thrust loads.
- Standard:
- ASME B16.5, ASME B16.47, ASME B31.3, EN 1092-1
- Material:
- ASTM A105, A350 LF2/LF3, A182 F304/L, F316/L, F11, F22
Made-to-order anchor flange covering all standard ASME sizes plus 2"–100" custom sizes machined on our own production line.
- Standard:
- ASME B16.5 / B16.47 / EN 1092-1 / müşteri std.
- Material:
- Karbon / Paslanmaz / Alaşımlı / Düşük Sıcaklık / Duplex
Related Sectors
Useful Calculation Tools
Detailed Technical Information and Quotation
Contact our expert team for detailed technical documents, application recommendations, and custom size quotations regarding this product type.
Get a QuoteWhat is an anchor flange?
An anchor flange is a heavy forged flange welded into a pipeline and encased in a concrete anchor (thrust) block. It is not a bolted joint: its job is to fix the pipe axially and transfer thrust loads from thermal expansion and internal pressure into the structure. Produced from 2" to 60" to ASME/AWWA practice or fully custom design.
Where and how anchor flanges are used
Anchor flanges are placed wherever the pipeline needs a fixed point: pump and compressor station boundaries, both banks of river and road crossings, steep slopes, aboveground-to-buried transitions and line terminations. The flange is butt-welded into the pipe on both sides and then embedded in a concrete block; expansion forces spread into the concrete through its large outside diameter. Unlike a standard flange it has no gasket face and no bolt holes — it is purely a load-transfer component. Each unit is custom-engineered from the pipe diameter, wall thickness, operating pressure and axial load calculation. Materials: forged carbon steel A105, A694 F42–F70 to match line pipe strength, A350 LF2 for low temperature. Delivered with NDT (UT/MT) and 3.1 certificates.
Frequently Asked Questions
What is the difference between an anchor flange and a standard flange?+
A standard flange is a bolted, demountable joint; an anchor flange has no gasket face or bolt holes — it is a load-transfer component that fixes the pipe into concrete.
What loads does an anchor flange carry?+
Axial thrust loads from thermal expansion/contraction and internal pressure; it takes them from the welded pipe and transfers them into the concrete anchor block.
Where are anchor flanges installed?+
At pump/compressor station boundaries, on both banks of river and road crossings, on steep slopes, at aboveground-to-buried transitions and at line terminations.
Which materials are anchor flanges made from?+
Forged carbon steel A105, A694 F42–F70 to match line-pipe strength, or A350 LF2 for low-temperature service; dimensions are engineered per project and verified with NDT + 3.1 certificates.
