Fixed Anchor Flange
Anchor flange designed to fix the pipe line and control thermal expansion.
Technical Specifications
Key Features
- Fully restrained connection
- High axial load capacity
- Thermal expansion control
- Welded connection
- Heavy duty design
- On-site anchoring
Applications
- Pipe line anchoring
- Compressor stations
- Pump stations
- Boiler connections
- Power plants
- Industrial facilities
Design Features
- Reinforced body design
- Support plates
- Weld details
- Concrete anchor holes
- Protective coating
Dimensions follow the standard or drawing specified in the order — sent with the quote.
Technical Notes
- 01Minimum concrete strength should be 25 MPa.
- 02Anchor rods should be stainless steel.
- 03Alignment before installation is critical.
- 04Thermal movement calculations must be made.
Fixed anchor flange: the fully restrained point of a pipeline
The fixed anchor flange is the basic form of the anchor flange: a forged ring with a weld-neck hub on each side, welded into the line and cast into concrete so that the pipe can neither move axially or laterally nor rotate at that point. Between two fixed points the line can expand only towards the loops, bends or expansion joints the designer has provided, so the fixed anchor decides how thermal movement is distributed along the route.
Its dimensions are not taken from a flange table. The outside diameter and ring thickness are calculated from the design thrust (the pressure end force plus the friction and thermal forces of the restrained length) and from the allowable bearing stress of the concrete. The hubs are machined to the outside diameter and wall of the line pipe and bevelled for butt welding; where anchor and pipe walls differ, the transition follows the taper rules of the governing pipeline code, ASME B31.4 for liquids or ASME B31.8 for gas. The forging grade is chosen from ASTM A694 F42–F70 so that its yield strength is not lower than that of the API 5L line pipe, for example F52 with X52 pipe.

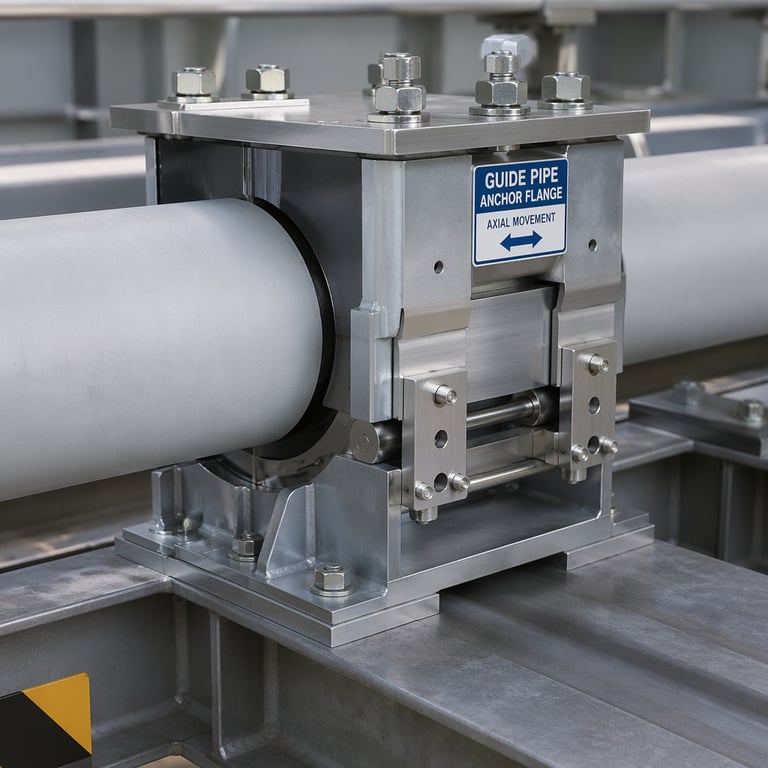

When ordering, state the pipe outside diameter, wall thickness and grade, the design pressure and temperature, and the axial load; ask for ultrasonic testing of the forging and a dimensional report. Where the line must move in a controlled direction, use a guide anchor; for high-pressure or large-diameter lines, the heavy-duty version.
Related products
What is an anchor flange?
An anchor flange is a heavy forged flange welded into a pipeline and encased in a concrete anchor (thrust) block.
