Branch Connection Fittings Catalogue - ASME B16.9
Optimized outlet fitting solutions and technical specifications for branch connections
Outlet Types
ASME B16.9 Standard
Branch Outlets (Olets): All types (9)
A short summary of each type is below. Dimension tables, materials and technical notes are on each type's own page.

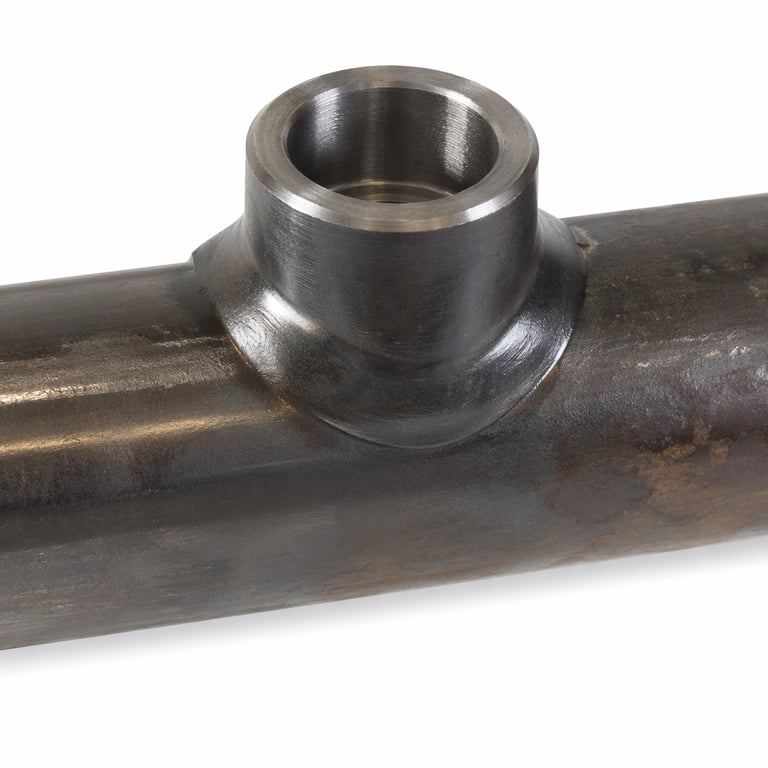

Socket-weld connection outlet optimized for small-diameter branch connections.
- Standard:
- ASME B16.11, MSS SP-79, ISO 4144
- Material:
- A105, A350 LF2, F304/L, F316/L, F11, F22
Swept-radius, hydrodynamic outlet optimized for low flow resistance.
- Standard:
- ASME B16.9, MSS SP-97, EN 10253
- Material:
- A105, WPB, WP5, WP9, 304/L, 316/L, A860 WPHY
Butt-weld outlet covering a wide size range; the most common outlet solution.
- Standard:
- ASME B16.9, MSS SP-97, EN 10253
- Material:
- A234 WPB, A105, 304/L, 316/L, A350 LF2
Threaded outlet enabling quick installation without welding.
- Standard:
- ASME B16.11, MSS SP-79, ISO 4144
- Material:
- A105, A350 LF2, F304/L, F316/L
45° outlet designed for special routing and space constraints.
- Standard:
- ASME B16.9, MSS SP-97, EN 10253
- Material:
- A234 WPB, A105, 304/L, 316/L, A350 LF2
Lateral outlet connecting the main at 45°, providing reduced pressure losses.
- Standard:
- ASME B16.9, MSS SP-97, EN 10253
- Material:
- A234 WPB, A860 WPHY, 304/L, 316/L
Outlet body with an integral short nipple for quick tie-ins.
- Standard:
- ASME B16.11, MSS SP-79
- Material:
- A105, A350 LF2, F304/L, F316/L
Weldolet with a partial insert into the run pipe for better alignment and flow transition.
- Standard:
- ASME B16.9, MSS SP-97
- Material:
- A234 WPB, 304/L, 316/L, A350 LF2
Coupolet
CPLT
Economical outlet using a threaded coupling body for small branches.
- Standard:
- ASME B16.11, MSS SP-79
- Material:
- A105, A350 LF2, F304/L, F316/L
Related Sectors
Useful Calculation Tools
Detailed Technical Information and Quotation
Contact our expert team for detailed technical documents, application recommendations, and custom size quotations regarding this product type.
Get a QuoteWhat are branch connection (olet) fittings?
Olet-type branch connection fittings are forged components that create a reinforced branch outlet from a run pipe without using a tee. Made to MSS SP-97, the most common types are the weldolet (butt-weld), sockolet (socket-weld) and threadolet (threaded). They are used from 1/2" to 24" under the ASME B31.1/B31.3 piping codes.
Olet types: weldolet, sockolet, threadolet, latrolet, elbolet
An olet body is integrally reinforced: its own wall section compensates the opening cut into the run pipe, so no reinforcing pad is needed. The type follows the branch pipe connection: the weldolet takes butt-welded larger branches; the sockolet (socket-weld) and threadolet (threaded) serve small branches, typically below 2". The latrolet makes a 45° lateral branch and the elbolet takes a branch off an elbow. For branches much smaller than the run — say a 1" outlet on an 8" line — an olet is faster and more economical than a reducing tee: the run stays uncut and one weld gives a reinforced outlet. Materials: forged carbon steel A105N, A350 LF2 for low temperature, A182 F304/F316 for stainless. Delivered with 3.1 certificates.
Frequently Asked Questions
Weldolet vs sockolet vs threadolet — what is the difference?+
The branch pipe connection: a weldolet is butt-welded (larger branches); a sockolet is socket-welded and a threadolet threaded (both typically for branches below 2").
When is an olet preferred over a reducing tee?+
When the branch is much smaller than the run (e.g. a 1" outlet on an 8" line): the run pipe stays uncut and a single weld gives a reinforced outlet, whereas a tee needs two run welds.
What are elbolets and latrolets for?+
A latrolet takes a 45° lateral branch off the run; an elbolet sits on the back of an elbow, usually for drain, vent or instrument connections.
Which standards cover olet fittings?+
Dimensions per MSS SP-97; branch end details per ASME B16.11 (socket/threaded) or B16.25 (weld bevel); system design follows the ASME B31.1/B31.3 piping codes.
