Branch Connections / NIP

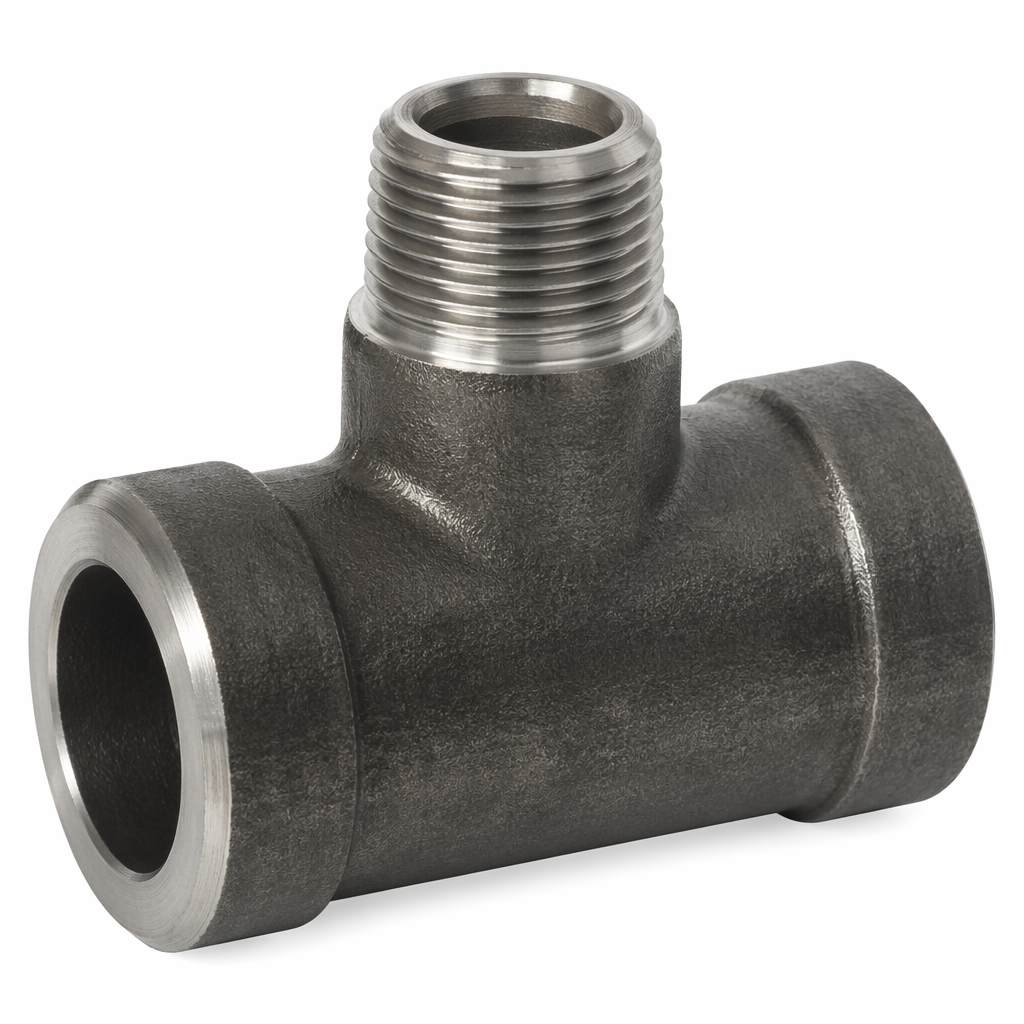

Nipolet - Nipple Outlet

Outlet body with an integral short nipple for quick tie-ins.

Nipolet - Nipple Outlet

Technical Specifications

Pressure
150# - 3000#
Temperature
-29°C to +400°C
Size Range
1/8" - 2" (branch), NPSM/NPT/SW end
Materials
A105, A350 LF2, F304/L, F316/L
Standards
ASME B16.11, MSS SP-79

Key Features

  • Integral nipple
  • Quick installation
  • Threaded or SW end
  • Compact design
  • Maintenance-friendly
  • Standard lengths

Applications

  • Instrumentation
  • Measurement ports
  • Temporary tie-ins
  • Low–medium pressure
  • Quick service lines
  • Maintenance points

Design Features

  • Multiple ends (NPT/SW)
  • Short/long nipple options
  • Reinforced body
  • Tight thread tolerances
  • Sealing compatibility
  • Certified testing

Connection Performance

Pressure Rating
3000#
Temperature Range
-29°C to +400°C
Branch Sizes
1/8" - 2"
Reinforcement
Integral

Dimensions follow the standard or drawing specified in the order — sent with the quote.

Technical Notes

  • 01Speeds up installation.
  • 02Ensure thread sealing.
  • 03Use locking compound for vibration.
  • 04Verify material compatibility.

Nipolet: integral-nipple outlet for valve take-offs

A nipolet combines an integrally reinforced outlet base and a pipe nipple in a single forging. The base is welded to the run pipe like a weldolet, and the nipple projects far enough to clear the insulation and take a valve directly: as a plain end inserted into a socket-weld valve, or as a male NPT thread for a threaded valve. Its main use is the vent and drain connection on process lines, steam lines and vessels, where a sockolet, a separate nipple and two welds would otherwise be needed.

Branch sizes are normally small bore, NPS 1/2 to 2. The base attachment and marking follow MSS SP-97, the male thread follows ASME B1.20.1, and the plain end is sized to fit ASME B16.11 sockets. The nipple wall is specified to suit the pressure rating, usually as a schedule such as Sch 80 or Sch 160, and the projection length is taken from the manufacturer's standard lengths or from the piping drawing. Common materials are ASTM A105, A350 LF2, A182 F304L/F316L and, for steam service, A182 F11/F22.

Because the nipolet removes one joint between run pipe and valve, it shortens the overhang and cuts the number of welds to inspect. On the other hand, a long nipple acts as a lever arm, so support the valve on long nipples in vibrating service. Order by run size, branch size, end type (plain or threaded), length, schedule and material. If a female connection is preferred, use the sockolet or threadolet.

What are branch connection (olet) fittings?

Olet-type branch connection fittings are forged components that create a reinforced branch outlet from a run pipe without using a tee.

Branch Outlets (Olets): guide and FAQ
