Flange Technical Catalogue
Comprehensive flange solutions and technical specifications for industrial piping systems
Flange Types
Select for technical details
Flanges: All types (4)
A short summary of each type is below. Dimension tables, materials and technical notes are on each type's own page.
Industry-standard solution for high pressure and high temperature applications.
- Standard:
- ASME B16.5, ASME B16.47, DIN 2633-2638, EN 1092-1
- Material:
- A105, A350 LF2, A182 F304/L, A182 F316/L, A182 F11, A182 F22
Cost-effective and easy-to-install solution for general industrial services.
- Standard:
- ASME B16.5, EN 1092-1, DIN 2573-2576
- Material:
- A105, A350 LF2, A182 F304/L, A182 F316/L
Used for line termination, maintenance isolation, and pressure testing.
- Standard:
- ASME B16.5, ASME B16.47, EN 1092-1
- Material:
- A105, A350 LF2, A182 F304/L, A182 F316/L, A182 F11, A182 F22
Screw-on solution that requires no welding.
- Standard:
- ASME B16.5, EN 1092-1, DIN 2558-2560
- Material:
- A105, A182 F304/L, A182 F316/L
Related Sectors
Useful Calculation Tools
Detailed Technical Information and Quotation
Contact our expert team for detailed technical documents, application recommendations, and custom size quotations regarding this product type.
Get a QuoteWhat is a weld neck flange?

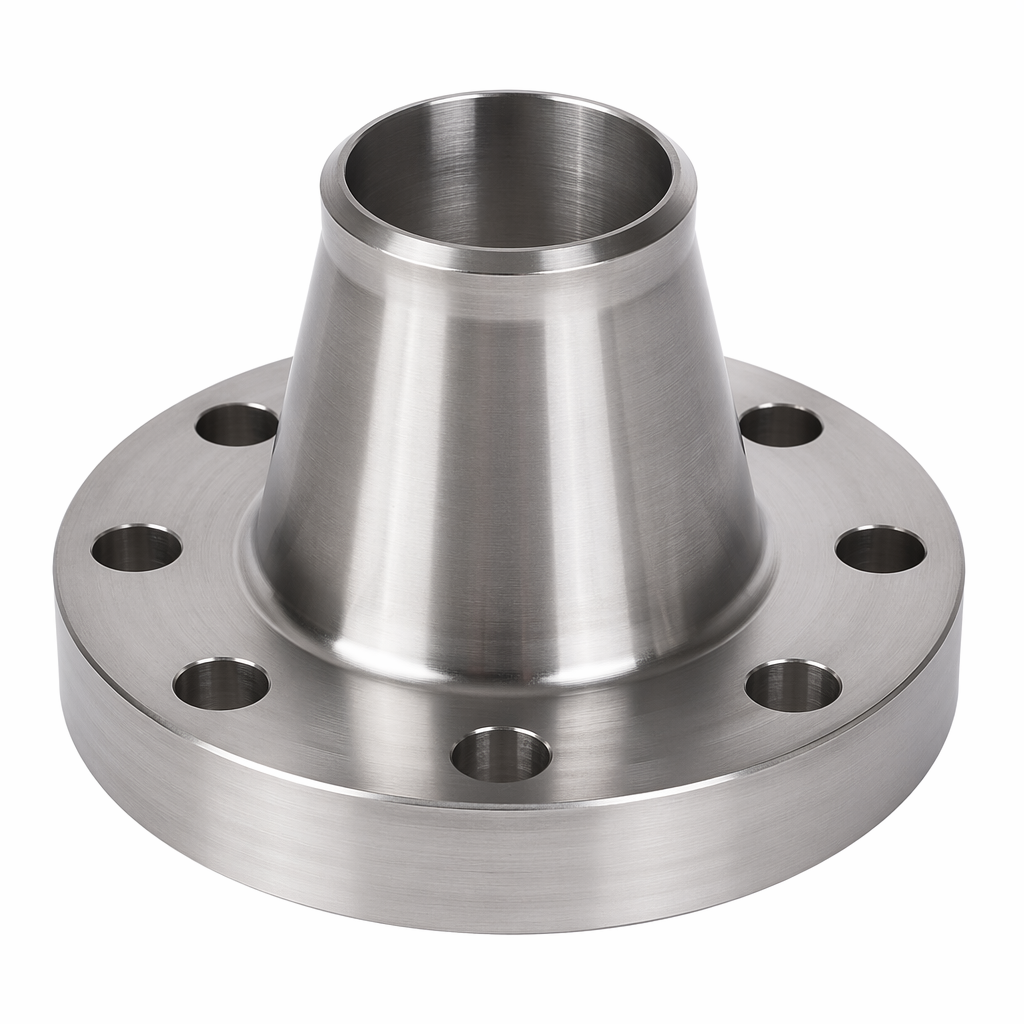

A weld neck flange has a long tapered hub that is butt-welded to the pipe. Because the hub transfers stress gradually from flange to pipe, it is the most reliable connection for high pressure, high temperature and cyclic loading. Other main types are slip-on, blind, threaded, socket-weld and lap-joint. Standards: ASME B16.5 (NPS ½–24), ASME B16.47 (large diameter) and EN 1092-1.
Choosing flange type, material and face
Type follows service conditions: weld neck for critical lines; slip-on for economical low-pressure assembly; blind for line ends; threaded where welding is not possible; socket-weld for small bores. Material follows the fluid and temperature: A105 (carbon steel, general purpose), A350 LF2 (low temperature), A182 F304/F316 (stainless), A182 F11/F22 (high temperature). Face types are RF (most common), FF and RTJ (high pressure); the rating is specified as Class 150–2500 or PN6–PN100.
Frequently Asked Questions
Weld neck vs slip-on flange — what is the difference?+
A weld neck is butt-welded and develops full pipe strength — preferred for high pressure/temperature and fatigue. A slip-on slides over the pipe with inner and outer fillet welds: cheaper and easier to align but lower rated.
What is A105?+
ASTM A105 is the forged carbon-steel flange material for ambient and moderate-temperature service — the standard grade for carbon-steel piping.
What does the flange rating (Class/PN) mean?+
Class (150–2500, ASME) and PN (6–100, EN) are pressure-temperature ratings; the allowable pressure derates as temperature rises.
Which standard is used where?+
ASME B16.5/B16.47 dominates North America and oil & gas; EN 1092-1 is common in Europe. Always match the standard and rating of the mating flange.
Related Blog Posts
Technical articles, guides and industry analyses

A105 vs A350 LF2: Which Flange Material for Low Temperatures?
A105 and A350 LF2 are two forged carbon steels of the same strength; the real difference is impact testing. LF2 Class 1 is guaranteed by a notch impact test at −46 °C, while A105 has no mandatory impact test. Chemistry and mechanical table, the window that meets both standards, and a flange–pipe–fitting set by design temperature.
