Ring Gaskets / RTJ-R

R Type Oval Ring Gasket

Standard oval section ring joint gasket designed for high-pressure applications.

Technical Specifications

Pressure
900# - 2500#
Temperature
-29°C to +650°C
Size Range
1/2" - 48"
Materials
304, 316, 347, 410, F5, soft iron, low-carbon steel
Standards
ASME B16.20, API 6A, ISO 10423

Key Features

  • Oval section design
  • High pressure resistance
  • Excellent sealing performance
  • Easy installation
  • Standard dimensions
  • Long service life

Applications

  • Petrochemical plants
  • High pressure pipelines
  • Power generation
  • Offshore platforms
  • Compressor stations
  • Critical process systems

Dimension Table

SizeRing No.Pitch Diameter P (mm)Ring Width A (mm)Oval Height B (mm)
1/2"R-1134.146.3511.2
1"R-1650.807.9514.2
2"R-2382.5511.1317.5
4"R-37149.2311.1317.5
8"R-49269.8811.1317.5
12"R-57381.0011.1317.5
16"R-65469.9011.1317.5

Ring numbers are for ASME B16.5 Class 300 and 600 flanges; dimensions per ASME B16.20, in mm. For other pressure classes and sizes, the ring number and dimensions are sent with the quote.

Technical Notes

  • 01Flange surface finish should be Ra 3.2–6.3 μm.
  • 02Cleaning before assembly is critical.
  • 03Compression rate should be between 15–20%.
  • 04Re-use requires inspection and approval.

R Type Oval Ring Gasket: grades, standards and selection notes

R Type Oval Ring Gasket belongs to our Ring Joint Gaskets range and is listed for sizes 1/2" – 48". Materials: 304, 316 (austenitic stainless steel; L grades are low-carbon for welding, 316 adds molybdenum for chloride resistance); 347 (stabilised stainless steels (Ti in 321, Nb in 347) against intergranular corrosion at temperature); 410 (13% Cr martensitic stainless steel); F5 (Cr-Mo alloy steels for high-temperature service).

The oval R ring seats in both the flat-bottom and the older round-bottom grooves of RTJ flanges. Standards: ASME B16.20 (metallic gaskets for pipe flanges, including R, RX and BX ring joints), API 6A (wellhead and christmas-tree equipment; it also specifies RX and BX ring gaskets) and ISO 10423 (the ISO counterpart of API 6A). Ring material and hardness are matched to the flange: the ring has to be softer than the groove so that the ring, not the groove, deforms when the joint is made up.

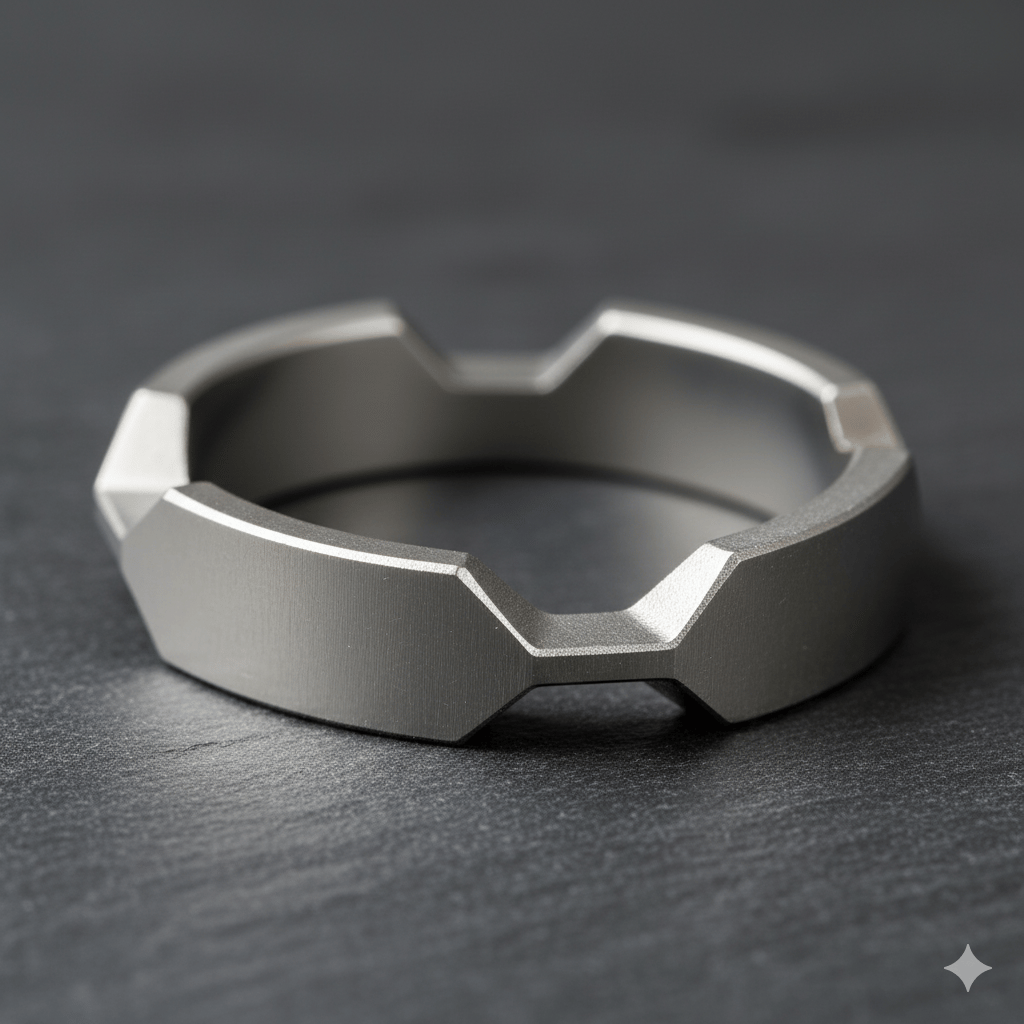

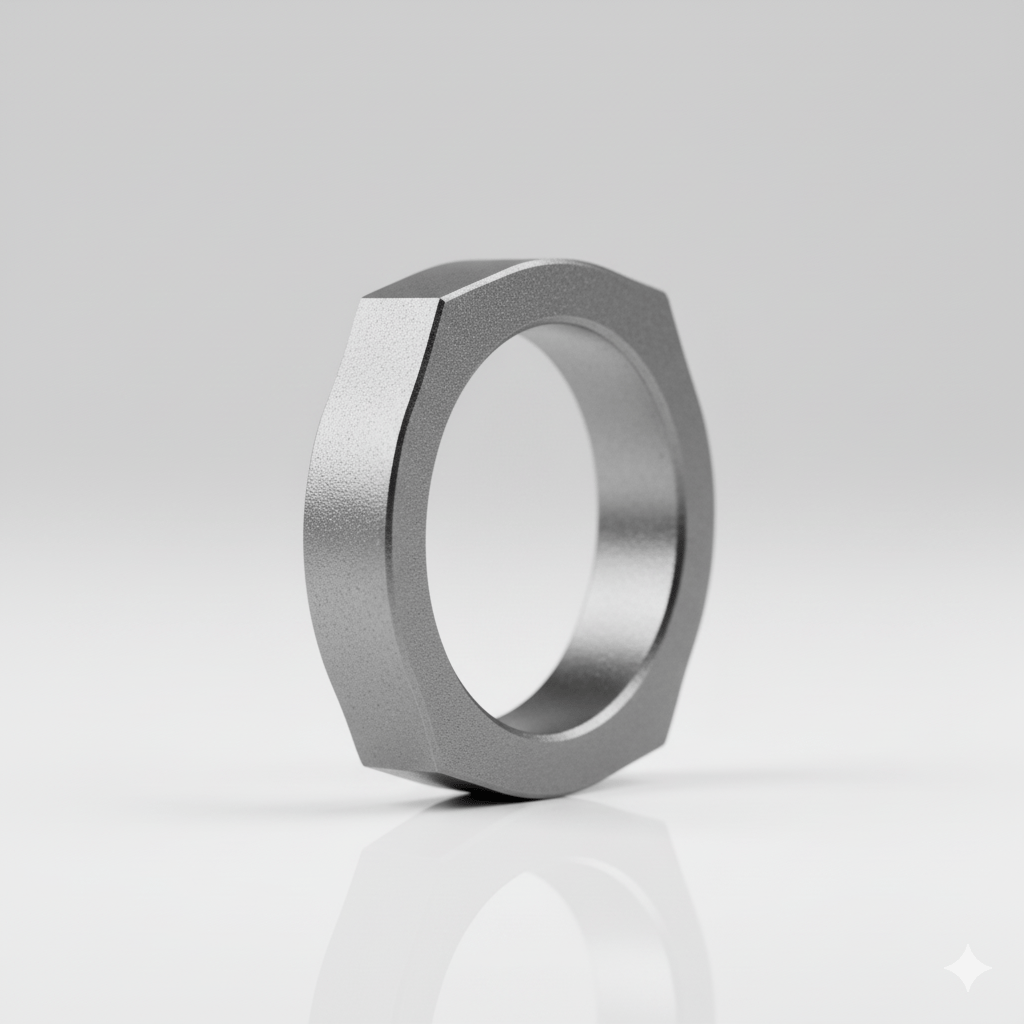

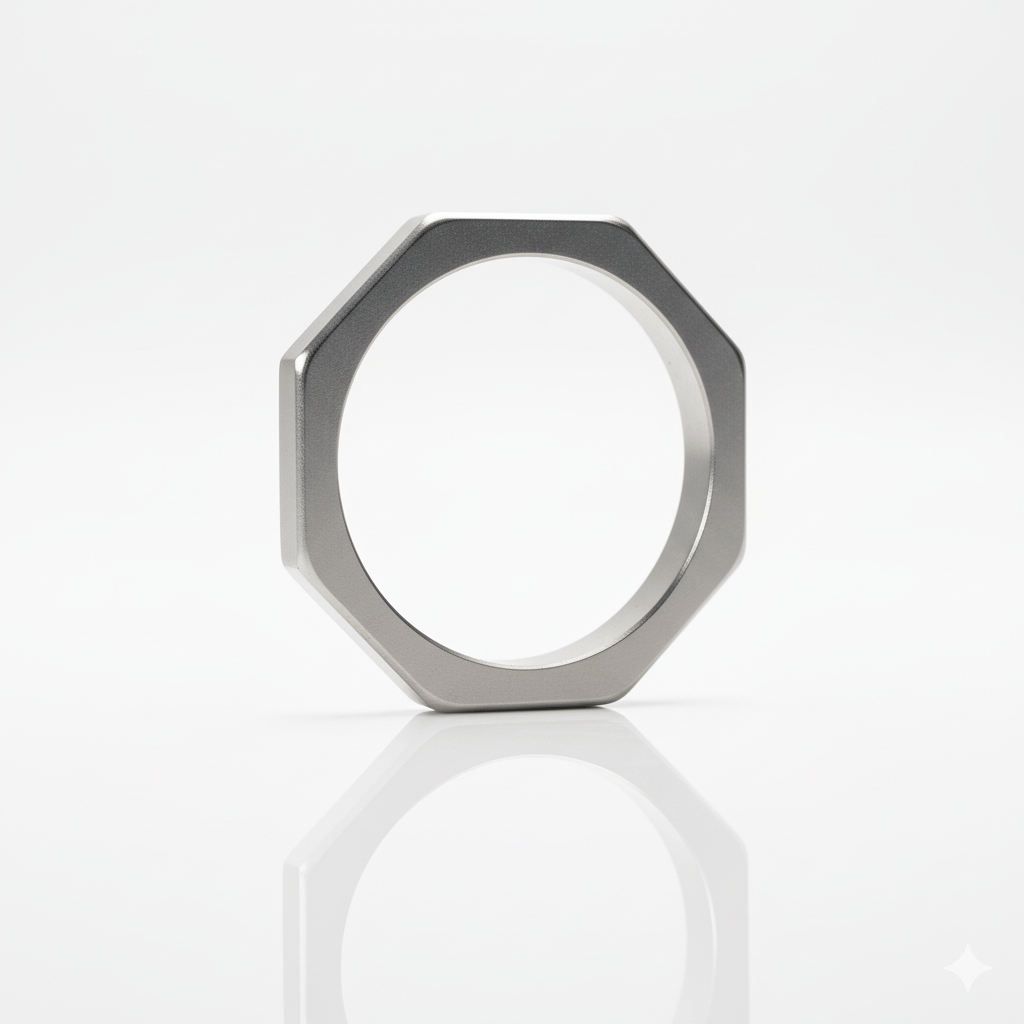

Compared with the other types in this group: RX Type Self-Sealing Ring Gasket — pressure-energised, same groove as R; size range 1" – 36"; standards ASME B16.20, API 6A, NACE MR0175. BX Type Metal Ring Gasket — for API 6BX flanges; size range 1-13/16" – 21-1/4"; standards API 6A, ASME B16.20, NACE MR0175. Octagonal Ring Gasket — octagonal profile, flat-bottom grooves only; size range 1/2" – 42"; standards ASME B16.20, API 6A. N Type Square Ring Gasket — square cross-section; size range 1/2" – 36"; standards manufacturer's standard or customer drawing.

To request a quotation for R Type Oval Ring Gasket, give the ring number for the flange size (sizes 1/2" – 48" are listed), the material (for example 304), the governing standard (ASME B16.20), the flange pressure class and the quantity. Material is supplied with an EN 10204 3.1 inspection certificate; third-party inspection by bodies such as SGS, Bureau Veritas or TÜV is arranged on request. Whether the size can be supplied from stock, the minimum quantity and the lead time are stated in the quotation, which is sent within 24 hours.

What is a ring joint gasket (RTJ)?

A ring joint gasket (RTJ) is a metallic sealing ring that seals flange connections at high pressure and temperature.
