Hot Rolled / WRD

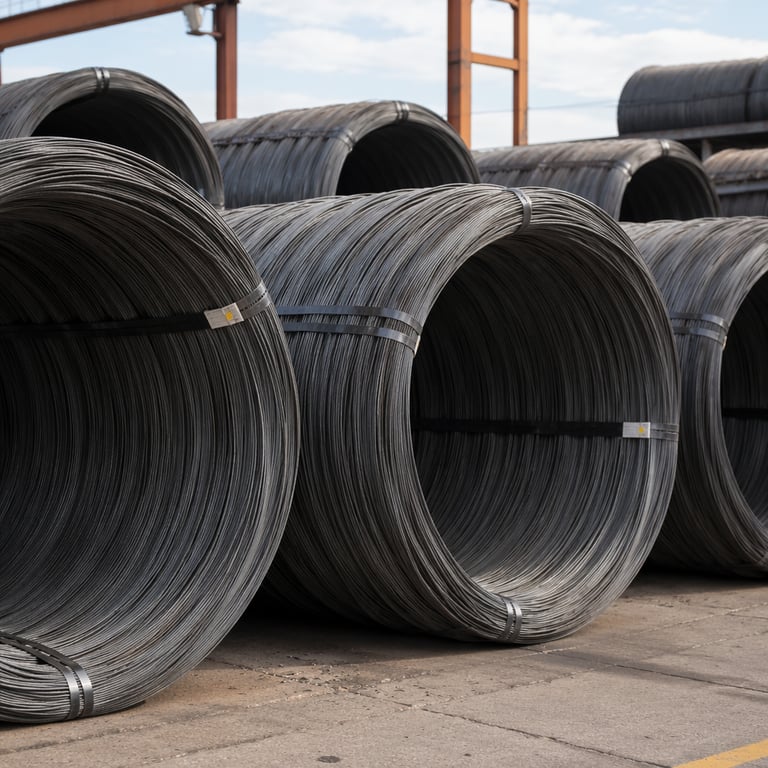

Wire Rod (Coil)

Hot rolled wire rod per EN 10017 standard, 4-36mm diameter range, delivered in coils.

Wire Rod (Coil)

Technical Specifications

Size Range
4 - 36 mm
Standard
EN 10017
Tolerance
EN 10017 Tolerances
Length
Coil Form

Key Features

  • Delivered in coil form
  • Suitable for cold drawing and rolling
  • Wide diameter range (4-36mm)
  • High surface quality
  • Suitable for wire drawing and fastener production
  • Low oxide scale

Applications

  • Wire drawing (steel wire production)
  • Bolt and nut manufacturing
  • Spring wire production
  • Nail and rivet manufacturing
  • Cold forming
  • Welding wire production

Dimension Table

FormSize RangeStandardSteel Grades
Wire Rod4 - 8 mmEN 10017SAE1018, C30, C35, 20MnB5
Wire Rod8 - 13 mmEN 10017C45, SAE1018, 30MnVS6, 33MnCrB5
Wire Rod13 - 20 mmEN 1001742CrMo4, C45, 30Mn5, 20MnB5
Wire Rod20 - 28 mmEN 1001742CrMo4, C45, 51CrV4, SAE4140
Wire Rod28 - 36 mmEN 1001742CrMo4, C45, 34CrMo4, 34CrNiMo6

Technical Notes

  • 01Coil weight typically ranges from 1.5 to 2.5 tons.
  • 02Surface condition: as-rolled or annealed available.
  • 03Phosphating or lime coating recommended before cold drawing.
  • 04Cold heading quality (CHQ) available for fastener production.
  • 05Internal diameter standard: 800-1200mm.

Wire Rod (Coil): grades, standards and selection notes

This page covers Wire Rod (Coil), part of our Hot Rolled Bars range. Size range: 4 - 36 mm. Grades named for this type: SAE1018, C30, C35, 20MnB5, C45, 30MnVS6, 33MnCrB5, 42CrMo4, 30Mn5, 51CrV4, SAE4140, 34CrMo4, 34CrNiMo6. It is supplied to EN 10017 (steel rod for drawing and/or cold rolling).

Reference grades with the chemical composition (wt %) and strength values of the standard: C45 (W.-Nr. 1.0503 · AISI/SAE 1045 · JIS S45C): C 0.42–0.50, Mn 0.50–0.80, Rm 700–850 MPa, Rp0.2 ≥ 490 MPa (+QT, d ≤ 16 mm). 42CrMo4 (W.-Nr. 1.7225 · AISI/SAE 4140 · JIS SCM440): C 0.38–0.45, Mn 0.60–0.90, Cr 0.90–1.20, Mo 0.15–0.30, Rm 1100–1300 MPa, Rp0.2 ≥ 900 MPa (+QT, d ≤ 16 mm). The full tables and equivalents are on our grade datasheets. The table splits 4 to 36 mm into 5 size bands: the smallest band lists SAE1018, C30, C35, 20MnB5, the largest 42CrMo4, C45, 34CrMo4, 34CrNiMo6.

How the other types differ, according to their data: Round Steel Bar: size range 12 - 340 mm; 42CrMo4: C 0.38–0.45, Mn 0.60–0.90, Cr 0.90–1.20, Mo 0.15–0.30 (C45: C 0.42–0.50, Mn 0.50–0.80, Cr —, Mo —). Hexagon Steel Bar: size range 15.5 - 100 mm (AF). Square Steel Bar: size range 10x10 - 250x250 mm. Flat Steel Bar: size range 10x3 - 150x60 mm. Wide Flat Steel Bar: size range 160x20 - 500x80 mm; S355J2: C ≤ 0.20 (C45: C 0.42–0.50). Each shape has its own dimensional standard (Wire Rod: EN 10017, Round: EN 10060, Hexagon: EN 10061, Square: EN 10059, Flat: EN 10058, EN 10092 and Wide Flat: DIN 59200), so shape and standard are named together in an enquiry.

To request a quotation for Wire Rod (Coil), state the grade (for example C45), size, tolerance class, the standard (EN 10017), length and quantity. Material is supplied with an EN 10204 3.1 inspection certificate; third-party inspection by bodies such as SGS, Bureau Veritas or TÜV is arranged on request. Whether the size can be supplied from stock, the minimum quantity and the lead time are stated in the quotation, which is sent within 24 hours.

What is a hot rolled steel bar?

A hot rolled bar is produced by shaping steel between rolls above its recrystallization temperature (~1100–1250°C), in round, square, hexagonal or flat sections.
