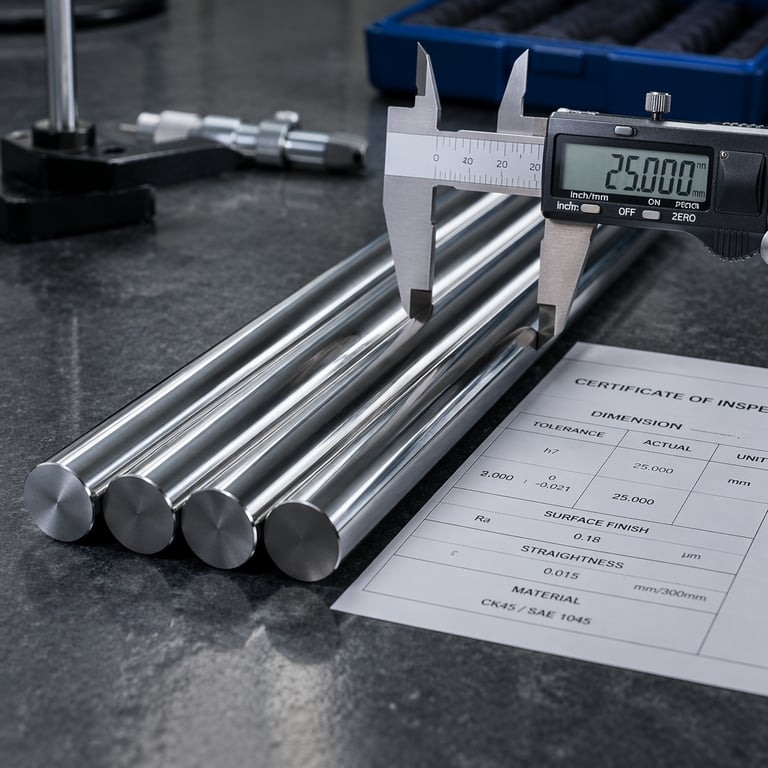

Grinding is applied for applications requiring the highest surface quality and tightest tolerances. Excellent dimensional accuracy and mirror-like surface finish is achieved in h7/h8 tolerance classes. Preferred for critical parts such as precision hydraulic cylinders, piston rods, and bearing shafts.

Grinding

Technical Specifications

Process
Centerless Grinding
Tolerance
h7 / h8 / h9
Size Range
Round: 10-80mm
Standards
EN 10278, EN 10277, ISO 286-2

Key Features

  • Tightest tolerance class (h7) - micron-level precision
  • Excellent surface quality
  • Mirror-like surface finish
  • Straightness ≤ 0.5mm/m
  • Ideal surface preparation for chrome plating
  • Surface compatible with sealing elements
  • Ovality and taper at minimum levels
  • High precision dimensional repeatability
  • Defect-free production for safety-critical parts
  • Applicable on heat-treated or raw material

Applications

  • Precision hydraulic cylinder pistons
  • Pneumatic cylinder rods
  • Chrome-plated piston rods
  • Bearing shafts and axle pins
  • Linear motion systems (linear shafts)
  • Injection molding machine tie bars
  • Printing machine shafts
  • Medical equipment components

Dimension Table

ProfileSize Range (mm)ToleranceStandardTypical surface (Ra)
Round10 - 20h7EN 10278≤ 0.4 µm
Round20 - 30h7EN 10278≤ 0.4 µm
Round30 - 50h7/h8EN 10278≤ 0.6 µm
Round50 - 65h8EN 10278≤ 0.8 µm
Round65 - 80h8/h9EN 10278≤ 0.8 µm

Technical Notes

  • 01h7 tolerance requires micron-level precision (e.g., Ø30mm: 0/-21µm).
  • 02Material must be cold drawn or peeled prior to grinding.
  • 03Centerless grinding is economical for high-volume production.
  • 04Standard length: 3000-6000mm, max 7000mm production possible.
  • 05Machined surface is coated with protective oil against oxidation.
  • 06Grinding process also improves straightness tolerance.

Steel Grades

C30C35C40C45C5034CrMo442CrMo4SAE 4140SAE 104516MnCrS520MnCrS511SMnPb3011SMn30S355J2S355J2G351CrV4100Cr6ETG 88ETG 100CK45Ck60

Grinding: grades, standards and selection notes

This page covers Grinding, part of our Bright Steel Bars range. Sizes in the dimension table: round 10–80 mm. Tolerance classes: h7 / h8 / h9. It is supplied to EN 10278 (dimensions and tolerances of bright steel products), EN 10277 (technical delivery conditions for bright steel products) and ISO 286-2 (ISO tolerance classes for shafts and bars).

Reference grades with the chemical composition (wt %) and strength values of the standard: C45 (W.-Nr. 1.0503 · AISI/SAE 1045 · JIS S45C): C 0.42–0.50, Mn 0.50–0.80, Rm 700–850 MPa, Rp0.2 ≥ 490 MPa (+QT, d ≤ 16 mm). 100Cr6 (W.-Nr. 1.3505 · AISI/SAE 52100 · JIS SUJ2): C 0.93–1.05, Mn 0.25–0.45, Cr 1.35–1.60. The full tables and equivalents are on our grade datasheets. In the dimension table (5 rows), round bars of 10–20 mm are listed in h7 (Ra ≤ 0.4 µm) and those of 65–80 mm in h8/h9 (Ra ≤ 0.8 µm), so the tolerance class widens as the size grows.

How the other types differ, according to their data: Cold Drawing: tolerance h9 / h10 / h11; size range round 4–90 mm; hexagon 6–70 mm; square 8–60 mm; flat 10x5–150x30 mm; surface Ra ≤ 1.6 µm … ≤ 2.5 µm. Peeling: tolerance h9 / h10 / h11 (>80mm h11); size range round 15–160 mm; surface Ra ≤ 1.6 µm … ≤ 4.0 µm; 42CrMo4: C 0.38–0.45, Mn 0.60–0.90, Cr 0.90–1.20, Mo 0.15–0.30 (C45: C 0.42–0.50, Mn 0.50–0.80, Cr —, Mo —). Cold drawing is the usual route for small and medium sizes, peeling removes the decarburised skin on larger diameters, and centreless grinding gives the tightest tolerance and the lowest roughness.

To request a quotation for Grinding, state the grade (for example C45), the cross-section (round), size, tolerance class (h7 / h8 / h9), the standard (EN 10278), length and quantity. Material is supplied with an EN 10204 3.1 inspection certificate; third-party inspection by bodies such as SGS, Bureau Veritas or TÜV is arranged on request. Whether the size can be supplied from stock, the minimum quantity and the lead time are stated in the quotation, which is sent within 24 hours.

What is bright steel?

Bright steel is hot-rolled bar finished cold — by cold drawing, peeling/turning or grinding — to a precise size and clean surface.
