Tablet Alloys

Master alloy tablets used for grain refinement, modification and alloying in aluminum casting industry.

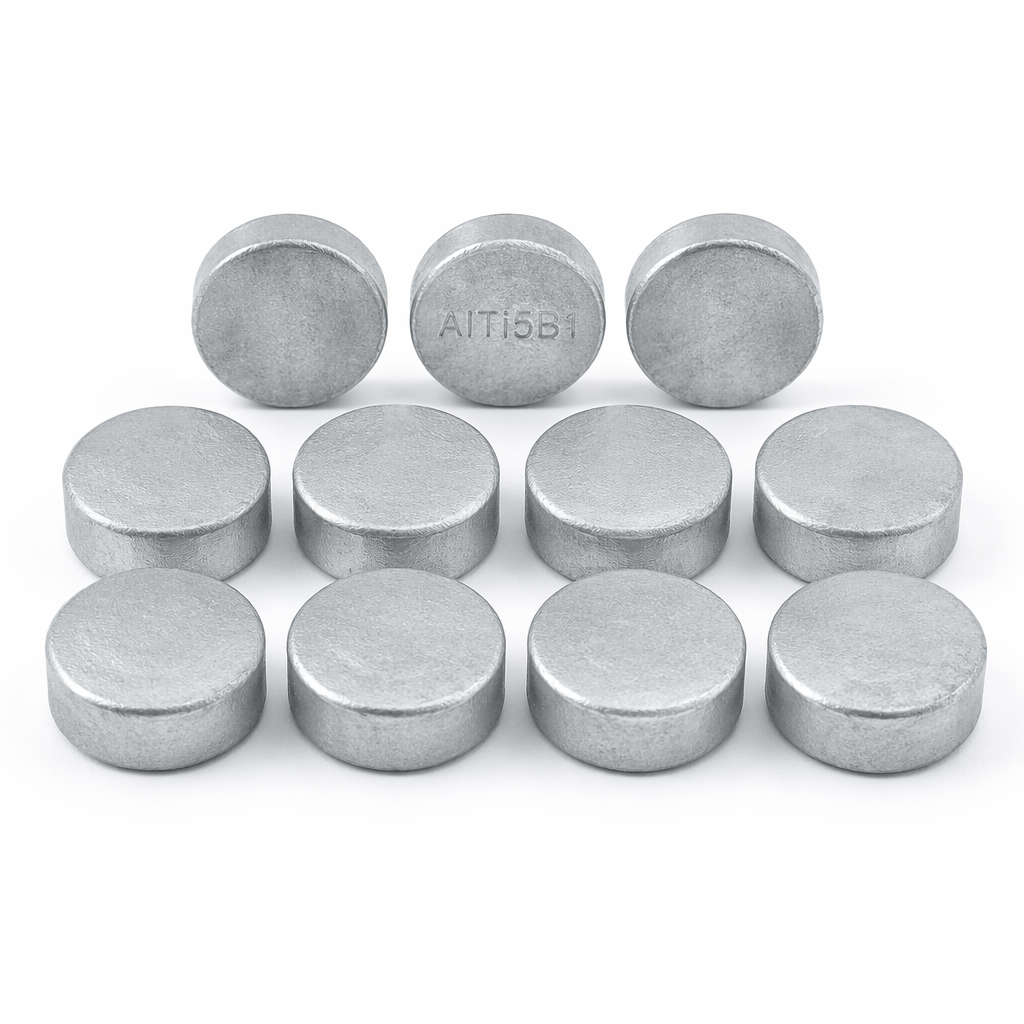

Tablet Alloys

Technical Specifications

Type
AlTi5B1, AlSr10, AlMn20
Capacity / Size
Tablet form (75-100g)
Packaging
10 kg box / 20 kg box
Origin
UK / Germany / Turkey

Key Features

  • AlTi5B1: grain refinement - mechanical property improvement
  • AlSr10: Si modification - elongation improvement
  • AlMn20: manganese alloying - corrosion resistance
  • Easy dosing (tablet form)
  • Homogeneous distribution
  • Fast dissolution

Applications

  • Aluminum die casting
  • Aluminum gravity casting
  • Automotive alloys (A356, A380)
  • Aerospace aluminum parts
  • Electronics sector casting
  • General aluminum foundries

Dimension Table

PropertySpecificationUnit
AlTi5B1 - Ti5 ± 0.5%
AlTi5B1 - B1 ± 0.2%
AlSr10 - Sr10 ± 1%
AlMn20 - Mn20 ± 2%
Tablet Weight75 - 100g

Technical Notes

  • 01AlTi5B1: should be added 10-15 minutes before casting.
  • 02AlSr10: Sr modification effect lasts approximately 2 hours (fading).
  • 03Tablets should be submerged below melt surface.
  • 04Dosage determined by alloy type and part thickness.
  • 05Store in dry and cool environment.

Other Types

Master alloy tablets: dosing, addition practice and verification

Tablets divide a master alloy into fixed, weighable portions, so the addition can be calculated from melt weight and target content instead of being estimated from pieces of waffle or rod. The chemistry of aluminium master alloys produced by melting, such as AlTi5B1, AlSr10 and AlMn20, is specified in EN 575, which sets the nominal content and impurity limits for each designation; the tablet is simply a convenient form of delivery.

Add tablets to a clean, skimmed melt at the temperature recommended for the alloy, push them below the surface with a preheated, coated bell or perforated plunger, and stir gently until they dissolve; tablets left floating oxidise and recovery falls. Grain refiner should go in shortly before casting so that the particles do not settle. Strontium modification takes time to become effective and is gradually lost during long holding or repeated degassing, so check it before each pouring period. Boron from grain refiners and strontium can reduce each other's effect, which is why some foundries separate the two additions or use boron-free refiners in Sr-modified alloys.

Verify rather than assume: confirm Ti, Sr and Mn by spectrometer, check grain size with a standard grain-refiner test such as the Aluminum Association TP-1 procedure, and judge modification by thermal analysis or metallography. Store tablets dry and sealed, since moisture leads to hydrogen pick-up and porosity, and use the oldest stock first. Crucibles and tools that touch the melt should be coated and preheated.

What are non-ferrous casting materials?

Non-ferrous casting materials are the melting and alloying consumables of aluminium, copper and zinc foundries.
